Titanium Grade 2 Pipe

  • Home
  • Titanium Grade 2 Pipe

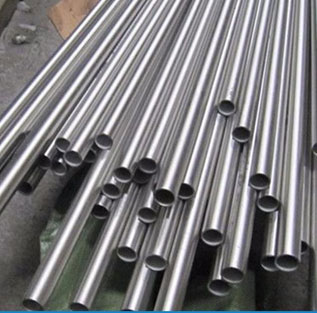

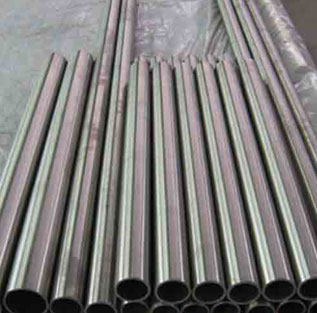

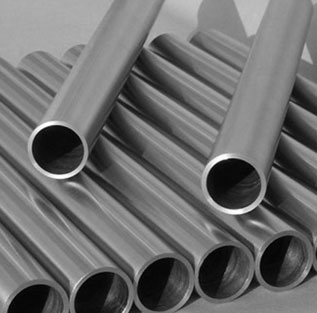

Titanium Grade 2 Seamless Pipe

Grade 2 Titanium Pipe Specification

Specifications
  • ASTM B861 seamless pipe, gr 2 titanium
  • ASTM B862 welded pipe, gr 2 titanium
Titanium Grade 2 Seamless Pipes size4 to 219mm W. T.: 0.5 to 20mm
Cp Grade 2 Welded Pipes size
5.0 – 1219.2 mm
ASME SB 861 Gr 2 EFW Pipes size5.0 -1219.2 mm
Specialized inLarge Diameter Size
Ti Cp Grade 2 Pipes ScheduleSCH5, SCH10, SCH40, STD, SCH80, SCH160
ASME SB 861 Grade 2 Pipes ConditionHot-Finished, Annealed, Cold-Drawn, Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
SB 861 Gr 2 Pipes FormSquare, Rectangular, Round, Hollow, Straight, Hydraulic
ASTM B861 Gr2 Titanium Pipes LengthSingle Random, Double Random & Cut Length.
EndPlain End, Beveled End, Treaded.
MarkingAll Titanium Cp Grade 2 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Material Test Certificates (MTC)Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Titanium Grade 2 Pipe manufacturers
  • Sumitomo Metals, Japan
  • Nippon Steel Corporation, Japan
  • Kobe Special Tube, Japan
  • Sanyo Special Steel, Japan
  • Tubacex Tubos Inoxidables S.A., Spain
  • Schoeller Bleckmann, Austria
  • Seah Steel Corporation, Korea
We can also cut, thread, and groove ASTM B861 Grade 2 Pipes to meet your specifications.

Titanium Grade 2 Seamless Pipe

TypesOut diameterWall thicknessLength
Grade 2 Titanium Seamless Pipes (Custom Sizes)5.0 ~ 203.2mmAs per requirementUpto 6 Meters

Cp Grade 2 Welded Pipe

TypesOut diameterWall thicknessLength
Grade 2 Titanium Welded Pipes (in Stock + Custom Sizes)5.0 ~ 1219.2mm1.0 ~ 15.0 mmUpto 6 Meters

Value Added services:

  • Hardness Test
  • Flattening Test
  • Pitting Resistance Test
  • Chemical Analysis – Spectro Analysis
  • Micro and Macro Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
  • Mechanical Testing Such as Tensile of Area
  • Positive Material Identification – PMI Testing

ASME SB 861 Gr 2 Pipe Types

Ti Cp Grade 2 Pipe Dimensions & Weight

NPSDN
mm		OD
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness inches (mm)Wall Thickness
inches (mm)		Wall Thickness
inches (mm)
–––SCH 5sSCH 5SCH 10sSCH 10SCH 20SCH 30SCH 40sSCH 40/STDSCH 60SCH 80sSCH 80SCH 100SCH 120SCH 140SCH 160XXS
⅛60.405″ (10.29) 0.035″ (0.889) 0.049″ (1.245) 0.057″ (1.448) 0.068″ (1.727)  0.095″ (2.413) – ––
¼80.540″ (13.72) 0.049″ (1.245) 0.065″ (1.651) 0.073″ (1.854) 0.088″ (2.235)  0.119″ (3.023) – ––
⅜100.675″ (17.15) 0.049″ (1.245) 0.065″ (1.651) 0.073″ (1.854) 0.091″ (2.311)  0.126″ (3.200) – ––
½150.840″ (21.34) 0.065″ (1.651) 0.083″ (2.108) – 0.109″ (2.769)  0.147″ (3.734) – 4.78mm0.294″ (7.47)
¾201.050″ (26.67) 0.065″ (1.651) 0.083″ (2.108) 2.41mm 0.113″ (2.870)  0.154″ (3.912) – 5.56mm0.308″ (7.823)
1251.315″ (33.40) 0.065″ (1.651) 0.109″ (2.769) 2.90mm 0.133″ (3.378)  0.179″ (4.547) – 6.35mm0.358″ (9.093)
1¼321.660″ (42.16) 0.065″ (1.651) 0.109″ (2.769) 0.117″ (2.972) 0.140″ (3.556)  0.191″ (4.851) – 6.35mm0.382″ (9.703)
1½401.900″ (48.26) 0.065″ (1.651) 0.109″ (2.769) 0.125″ (3.175) 0.145″ (3.683)  0.200″ (5.080) – 7.14mm0.400″ (10.160)
2502.375″ (60.33) 0.065″ (1.651) 0.109″ (2.769) 0.125″ (3.175) 0.154″ (3.912)  0.218″ (5.537) 0.250″ (6.350) 8.74mm0.436″ (11.074)
2½652.875″ (73.02) 0.083″ (2.108) 0.120″ (3.048) 0.188″ (4.775) 0.203″ (5.156)  0.276″ (7.010) 0.300″ (7.620) 0.344″ (8.738)0.552″ (14.021)
3803.500″ (88.90) 0.083″ (2.108) 0.120″ (3.048) 0.188″ (4.775) 0.216″ (5.486)  0.300″ (7.620) 0.350″ (8.890) 0.438″ (11.13)0.600″ (15.240)
3½904.000″ (101.60) 0.083″ (2.108) 0.120″ (3.048) 0.188″ (4.775) 0.226″ (5.740)  0.318″ (8.077) – –0.636″ (16.154)
41004.500″ (114.30) 0.083″ (2.108) 0.120
” (3.048)		–0.188 in
(4.775)		 0.237″ (6.02)0.281
” (7.137)		 0.337″ (8.560)–0.437
” (11.13)		–0.531
” (13.49)		–
4½1155.000″ (127.00) – ––– 0.247″ (6.274)– 0.355″ (9.017)–––––
51255.563″ (141.30) 0.109″ (2.769) 0.134″ (3.404)–– 0.258″ (6.553)– 0.375″ (9.525)–0.500
” (12.70)		–0.625
” (15.875)		–
61506.625″ (168.27) 0.109″ (2.769) 0.134″ (3.404)–– 0.280″ (7.112)– 0.432″ (10.973)–0.562
” (14.27)		–0.719
” (18.263)		–
82008.625″ (219.08) 0.109″ (2.769) 0.148″ (3.759)0.250″ (6.35)0.277
” (7.036)		 0.322″ (8.179)0.406″ (10.312) 0.500″ (12.70)0.593″ (15.09)0.718″ (18.2 6mm)0.812″ (20.62mm)0.906
” (23.01)		–
1025010.75″ (273.05)0.134″ (3.404)0.134″ (3.404)0.165″ (4.191)0.165″ (4.191)0.250″ (6.350)0.307″ (7.798)0.365″ (9.271)0.365″ (9.271)0.500″ (12.700)0.500″ (12.700)0.593″ (15.062)0.718″ (18.237)0.843″ (21.412)1.000″ (25.400)1.125″ (28.575)–
1230012.75″ (323.85)0.156″ (3.962)0.165″ (4.191)0.180″ (4.572)0.180″ (4.572)0.250″ (6.350)0.330″ (8.382)0.375″ (9.525)0.406″ (10.312)0.500″ (12.700)0.500″ (12.700)0.687″ (17.450)0.843″ (21.412)1.000″ (25.400)1.125″ (28.575)1.312″ (33.325)–
1435014.00″ (355.60)0.156″ (3.962)0.156″ (3.962)0.188″ (4.775)0.250″ (6.350)0.312″ (7.925)0.375″ (9.525)0.375″ (9.525)0.437″ (11.100)0.593″ (15.062)0.500″ (12.700)0.750″ (19.050)0.937″ (23.800)1.093″ (27.762)1.250″ (31.750)1.406″ (35.712)–
1640016.00″ (406.40)0.165″ (4.191)0.165″ (4.191)0.188″ (4.775)0.250″ (6.350)0.312″ (7.925)0.375″ (9.525)0.375″ (9.525)0.500″ (12.700)0.656″ (16.662)0.500″ (12.700)0.843″ (21.412)1.031″ (26.187)1.218″ (30.937)1.437″ (36.500)1.593″ (40.462)–
1845018.00″ (457.20)0.165″ (4.191)0.165″ (4.191)0.188″ (4.775)0.250″ (6.350)0.312″ (7.925)0.437″ (11.100)0.375″ (9.525)0.562″ (14.275)0.750″ (19.050)0.500″ (12.700)0.937″ (23.800)1.156″ (29.362)1.375″ (34.925)1.562″ (39.675)1.781″ (45.237)–
2050020.00″ (508.00)0.188″ (4.775)0.188″ (4.775)0.218″ (5.537)0.250″ (6.350)0.375″ (9.525)0.500″ (12.700)0.375″ (9.525)0.593″ (15.062)0.812″ (20.625)0.500″ (12.700)1.031″ (26.187)1.280″ (32.512)1.500″ (38.100)1.750″ (44.450)1.968″ (49.987)–
2460024.00″ (609.60)0.218″ (5.537)0.218″ (5.537)0.250″ (6.350)0.250″ (6.350)0.375″ (9.525)0.562″ (14.275)0.375″ (9.525)0.687″ (17.450)0.968″ (24.587)0.500″ (12.700)1.218″ (30.937)1.531″ (38.887)1.812″ (46.025)2.062″ (52.375)2.343″ (59.512)–
–––SCH 5sSCH 5SCH 10sSCH 10SCH 20SCH 30SCH 40sSCH 40/STDSCH 60SCH 80sSCH 80SCH 100SCH 120SCH 140SCH 160XXS

WEIGHT FACTORS FOR OTHER STEEL & NICKEL ALLOYS

  • Titanium – 0.582
  • Carbon Steel – 0.993
  • Alloy 2205 – 0.997
  • Alloy 800 – 1.025
  • Alloy 825 – 1.039
  • Alloy 625 – 1.068
  • Alloy 600 – 1.074
  • Alloy C-276 – 1.129
  • Alloy 400 – 1.139
  • Nickel – 1.146
  • Cu-Nickel 70/30 – 1.18

Grade 2 Titanium Pipe Stock List

TITANIUM GR2 ASTM B861Titanium Pipe Dimension
seamless, soft annealed1.59 x 0.645 mm
seamless, annealed3.0 x 0.5 mm
seamless, annealed, pickled4.0 x 0.5 mm
seamless6.0 x 1.0 mm
seamless, annealed6.35 x 0.9 mm (0.25″ x 0.035″)
seamless, annealed6.35 x 0.89 mm (0.25″ x 0.035″)
seamless, annealed6.35 x 0.9 mm (0.25″ x 0.035″)
seamless, annealed8.0 x 1.0 mm
Titanium Gr 2 Pipe; welded9.5 x 0.9 mm
seamless9.5 x 0.9 mm
Titanium Gr 2 Pipe; seamless60.33 x 3.91 mm (2″nb sch40s)
seamless60.33 x 5.54 mm (2″nb sch80s)
seamless73.03 x 3.05 mm (2½”nb sch10s)
seamless73.03 x 5.16 mm (2½”nb sch40s)
Titanium Gr 2 Pipe; seamless88.9 x 3.05 mm (3″nb sch10s)
seamless88.9 x 5.49 mm (3″nb sch40s)
seamless101.6 x 3.05 mm (3½”nb sch10s)
Titanium Gr 2 Pipe; seamless101.6 x 5.74 mm (3½”nb sch40s)
seamless114.3 x 3.05 mm (4″nb sch10s)
Titanium Gr 2 Pipe; seamless114.3 x 5.74 mm
seamless168.3 x 3.4 mm (6″nb sch10s)

ASME SB 861 Grade 2 Pipe Chemical Composition

Titanium Gr 2CTiNFeHOVAl
0.1 max99.2 min0.03 max0.3 max0.015 max0.25 max––

SB 861 Gr 2 Pipe Mechanical Properties

DensityMelting PointYield Strength (0.2%Offset)Tensile StrengthElongation
4.5 g/cm31665 °C (3030 °F)Psi – 39900 , MPa – 275Psi – 49900 , MPa – 34420 %

Equivalent Grades for ASTM B861 Gr2 Titanium Pipes

STANDARDUNSWERKSTOFF NR.
Titanium Gr 2R504003.7035
